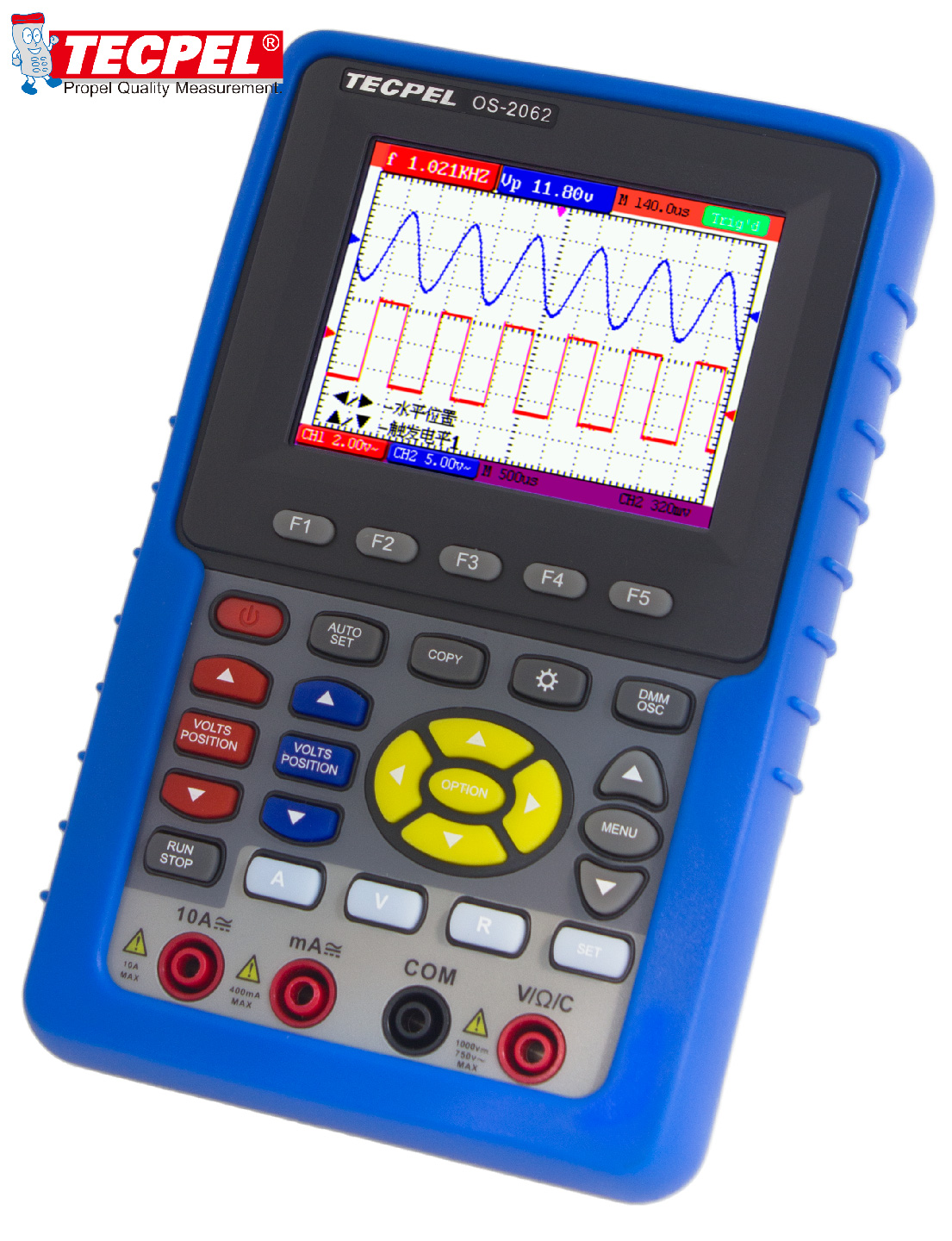

60MHz Oscilloscope handheld OS-2062

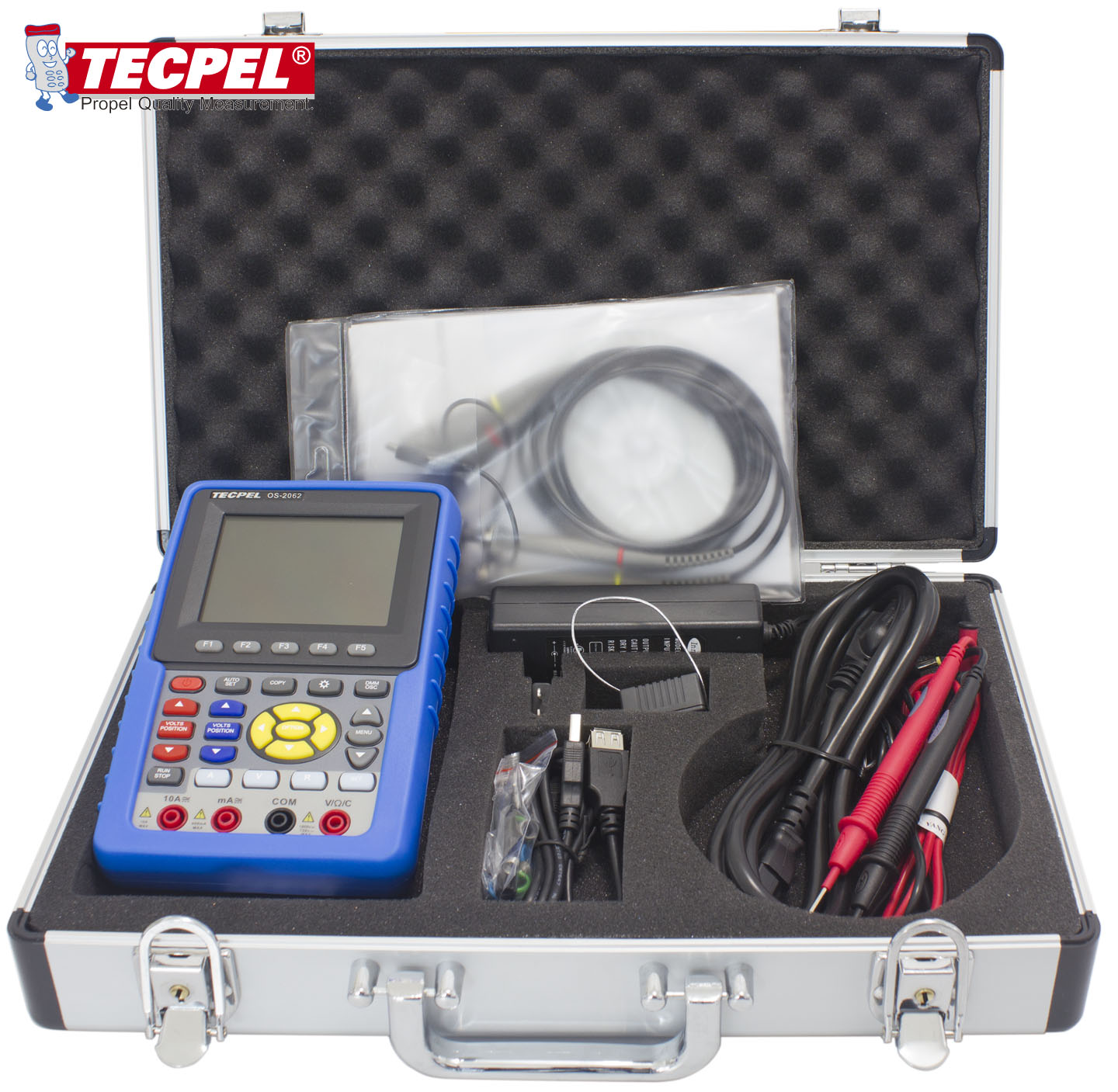

This handheld oscilloscope multimeter is a great tool for industrial troubleshooting, Auto
diagnostic and field service applications at affordable price. Make sure your measurements
precisely tested by using this rugged, small and light weight tool
It can be operated by either battery powered or 8.5V/1500mA DC adapter(Standard
Accessoriesl). It has optically sealed USB transfer, and can measure DC V up to 1000V, AC up
to 750V, frequency up to 60MHz and etc.
This handheld oscilloscope multimeter is a great tool for industrial troubleshooting, Auto
diagnostic and field service applications at affordable price. Make sure your measurements
precisely tested by using this rugged, small and light weight tool
It can be operated by either battery powered or 8.5V/1500mA DC adapter(Standard
Accessoriesl). It has optically sealed USB transfer, and can measure DC V up to 1000V, AC up
to 750V, frequency up to 60MHz and etc.
Key Features:
60 MHz
1. Autoscale
2. 20 Automatic Measurements
3. 3 in 1(DSO+Multimeter+Cymometer)
4. Bandwidth: 60 MHz
5. Support USB for data transmission to PC
6. Replaceable li-ion battery back up (6
hours)
7. USB Flash Disk Storage
8. FFT
60 MHz
1. Autoscale
2. 20 Automatic Measurements
3. 3 in 1(DSO+Multimeter+Cymometer)
4. Bandwidth: 60 MHz
5. Support USB for data transmission to PC
6. Replaceable li-ion battery back up (6
hours)
7. USB Flash Disk Storage
8. FFT
Download 60MHz handheld oscilloscope manual
SPECIFICATIONS
Model Name OS-2062
Bandwidth 60MHz
Sample Rate ( Real time ) 250MS/s
Horizontal Scale(S/div) 5ns/div～100s/div
step by 1～2.5～5
Rise time(at input, typical) ≤17.5ns
Display 3.7 inch color display with TFT panel(640×480 pixels, 65535 colors)
Channels Dual
Input impedance 1MΩ±2%，in parallel with 20pF±3pF
Record length Max. 6000 points on each channel
Interpolation (sin x)/x
Probe attenuation factor 1X，10X
Input coupling DC, AC, GND
DC accuracy(Average) Average>16:±(5% reading+0.05div) for △V
Vertical Sensitivity 5mV/div～5V/div (at input)
Vertical resolution (A/D) 8 bit(2 channels simultaneously )
Max. Input Voltage 400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance,
Probe attenuation 10:1)
Trigger Type Edge, Video, Alternate
Trigger Mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Acquisition modes Sample, Peak Detect and Average
DC gain accuracy ±3%
Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,
Width,Overshoot
,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B、
Delay A→B
Waveform math ＋, －, ×, ÷, FFT
Waveform storage 4 waveforms
Lissajou’s
figure Bandwidth 20MHz
Phase difference ±3 degrees
Communication interface USB
Power supply 100V-240V AC, 50/60Hz
Li-ion battery 7.4V, 6 hours operation
Multimeter specifications
Full scale reading 3 3/4 digits (Max.4000-count)
Input Impedance 10 MΩ
Capacitance 51.2nF-100uF:±(3%±3 digit)
Voltage VDC:400mV,4V, 400V: ±(1±1digit) Max.input:DC 1000V, VAC:4V,40V,
400V:±(1±3digit)
Frequency:40Hz-400Hz, Max:input:AC 750V(virtual value)
Current DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit)
Impedance 400Ω:±(1%±3digit), 40Ω
General specifications
Interface USB Data Cable (Transfer waveform data to a PC)
Power Supply:100V～240V AC,50/60Hz DC input: 8.5VDC, 1500mA
Battery: 6 hours
Dimension 180mm x 115mm x 40mm
Weight 645g
Handheld Oscilloscope 20MHz, Dual Channels, color LCD panel Model: OS-2062 >
SPECIFICATIONS
Model Name OS-2062
Bandwidth 60MHz
Sample Rate ( Real time ) 250MS/s
Horizontal Scale(S/div) 5ns/div～100s/div
step by 1～2.5～5
Rise time(at input, typical) ≤17.5ns
Display 3.7 inch color display with TFT panel(640×480 pixels, 65535 colors)
Channels Dual
Input impedance 1MΩ±2%，in parallel with 20pF±3pF
Record length Max. 6000 points on each channel
Interpolation (sin x)/x
Probe attenuation factor 1X，10X
Input coupling DC, AC, GND
DC accuracy(Average) Average>16:±(5% reading+0.05div) for △V
Vertical Sensitivity 5mV/div～5V/div (at input)
Vertical resolution (A/D) 8 bit(2 channels simultaneously )
Max. Input Voltage 400V (PK-PK) (DC + AC PK-PK, 1MΩ input impedance,
Probe attenuation 10:1)
Trigger Type Edge, Video, Alternate
Trigger Mode Auto, Normal, Single
Trigger level ±6 divisions from screen center
Acquisition modes Sample, Peak Detect and Average
DC gain accuracy ±3%
Automatic Measurement Vpp,Vavg,RMS,Frequency,Period,Vmax,Vmin,Vtop,Vbase,
Width,Overshoot
,Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A→B、
Delay A→B
Waveform math ＋, －, ×, ÷, FFT
Waveform storage 4 waveforms
Lissajou’s
figure Bandwidth 20MHz
Phase difference ±3 degrees
Communication interface USB
Power supply 100V-240V AC, 50/60Hz
Li-ion battery 7.4V, 6 hours operation
Multimeter specifications
Full scale reading 3 3/4 digits (Max.4000-count)
Input Impedance 10 MΩ
Capacitance 51.2nF-100uF:±(3%±3 digit)
Voltage VDC:400mV,4V, 400V: ±(1±1digit) Max.input:DC 1000V, VAC:4V,40V,
400V:±(1±3digit)
Frequency:40Hz-400Hz, Max:input:AC 750V(virtual value)
Current DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit)
Impedance 400Ω:±(1%±3digit), 40Ω
General specifications
Interface USB Data Cable (Transfer waveform data to a PC)
Power Supply:100V～240V AC,50/60Hz DC input: 8.5VDC, 1500mA
Battery: 6 hours
Dimension 180mm x 115mm x 40mm
Weight 645g
Handheld Oscilloscope 20MHz, Dual Channels, color LCD panel Model: OS-2062 >
Model: OS-2062
