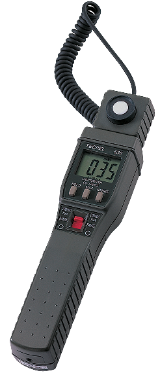

light Meter DLM-530
Accurate Visible Compensation Filter f’1 is Used.
CIE (λ):f’1<2%,<3%,<5%,<8%,v(λ)Match
Cosine Response:f’2<2%
Range : From 20 to 200,000 Lux
Analog Output Standard
Valox Housing to Withstand Accidental Drops
Digital and Analog Output Function
Highly accurate f’1 Compensation and Diffuser f’2<2%
MAX/Data Hold Function
Backlit LCD Display
Accurate Visible Compensation Filter f’1 is Used.
CIE (λ):f’1<2%,<3%,<5%,<8%,v(λ)Match
Cosine Response:f’2<2%
Range : From 20 to 200,000 Lux
Analog Output Standard
Valox Housing to Withstand Accidental Drops
Digital and Analog Output Function
Highly accurate f’1 Compensation and Diffuser f’2<2%
MAX/Data Hold Function
Backlit LCD Display
- CIE (λ):f’1<2%,<3%,<5%,<8%,v(λ)Match
- Cosine Response:f’2<2%
- Range : 20 Lux,200 lux, 2000 lux, 20,000 Lux ;
- 20fc, 200fc, 2000fc, 20,000fc
- Analog Output Standard (output impedance 500 ohm)
- Valox Housing to Withstand Accidental Drops
- Digital and Analog Output Function
- Highly accurate f’1 Compensation and Diffuser f’2<2%
- Peak Data Hold Function
- Backlit LCD Display
- High Accuracy : ±3%rdg+10dgts
- 3 1/2 digit LCD display with a maximum reading of 1999
- Automatic Zero
Datalogging Light Meter DLM-536
- Datalogging Light Meter (RS-232)
- Spectrum of photo sensor meets C.I.E.
- photopic curve V(l)
- 16000 Records Data logging capacity
- RS-232 interface (software included)
- Measurement of luminous intensity
- (PC Software)
UVA Light Meter
Product ID: UVA-830
1.999 mW /cm2
19.99 mW /cm2
_With MAX/DATA HOLD function
_With pocket hook
_Ultra-violet irradiance measurement for
UVA
_UV detector spectrum from 320nm to
400nm
The "TR-74Ui Illuminance UV Recorder" is a
simultaneously measure and record four
items: Illuminance, Ultraviolet Light (UV),
Temperature and Humidity. In addition to
these, the TR-74Ui is also capable of
displaying Cumulative Illuminance and
Cumulative Amount of Ultraviolet Light in the
LCD display. From dim moonlight to the
summer sun, Illuminance can be measured
simultaneously measure and record four
items: Illuminance, Ultraviolet Light (UV),
Temperature and Humidity. In addition to
these, the TR-74Ui is also capable of
displaying Cumulative Illuminance and
Cumulative Amount of Ultraviolet Light in the
LCD display. From dim moonlight to the
summer sun, Illuminance can be measured
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
