Product ID: DCM-033

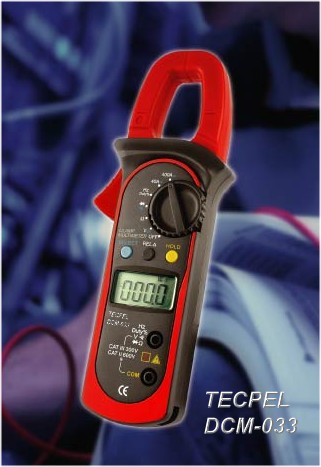

3999 count clamp meter ( DCM-033)
DCM-033 Features:
DC Voltage 400mV~ 600V (0.8%+1)
AC Voltage 4V ~ 600V (1%+5)
DC Current 40A/400A (2%+3)
AC Current 40A/400A (2.5%+5)
Resistance 400 ~40M Ohm (1%+2)
Frequency
Duty Cycle
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for
DC Voltage Measurement
Around 10MW

Max. Display 3999









SPECIFICATIONS
SPECIFICATIONS Basic Functions Range Best Accuracy
DC Voltage 400mV/4V/40V/400V/600V (0.8%+1)
AC Voltage 4V/40V/400V/600V (1%+5)
DC Current 40A/400A (2%+3)
AC Current 40A/400A (2.5%+5)
Resistance 400 /4k/40k/400k/4M/40M Ohm (1%+2)
Frequency 10Hz~1MHz (0.1%+3)
Duty Cycle 0.1%~99.9%
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC Voltage Measurement : Around 10M Ohm

Max. Display 3999
GENERAL CHARACTERISTICS
GENERAL CHARACTERISTICS Power 9V Battery (6F22)
LCD Size 35.6 x 18 mm
Product Colour Red and Grey
Product Net Weight 200g
Product Size 210 x 75.6 x 30mm
Standard Accessories Test Lead, English Manual, Carrying Bag
Standard Individual Packing Gift Box
Standard Quantity Per Carton 40 pcs
Standard Carton Measurement 510 x 490 x 330mm
(0.082 CBM Per Standard Carton)

Standard Carton Gross Weight 15kg


Certificate: CE

Ordering information:

3999 counts Digital Clamp-on Meter DCM-033


Minimum Order: Negotiable
